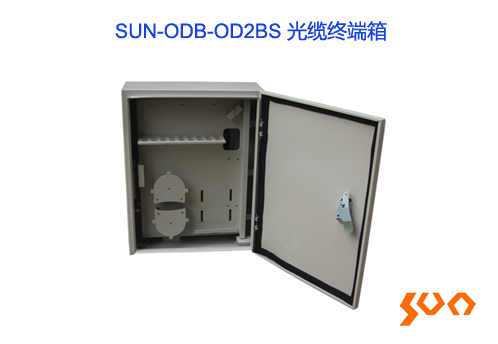

Outdoor wall mount, Max cores: 36 ⁄ 72, IP65, 1:32 1:64 Splitter
| Parameters | Specification | ||
| Model | SUN-ODB-OD2BS-36 | SUN-ODB-OD2BS-72 | |
| Max Number of Cores | 36 | 72 | |
| Adapter Type | FC square, SC, ST, DLC (SC type) | ||
| Box Material | Cold-rolled steel | ||
| Number of Inlets and Outlets | 2 in 64 out | ||
| Cable Diameter (mm) | 24 | ||
| Splitter Type | ABS box (module) | ||
| Dimensions(mm) | 450(L) x 350(W) x 150(H) | 550(L) x 450(W) x 220(H) | |
| Weight (kg) | 8.2 | 9.2 | |
| No. | Product | Unit | Quantity |
| 1 | Cabinet | set | 1 |
| 2 | Protective Sleeves | pieces | 36 or 72 |
| 3 | Keys | pieces | 2 |
| 4 | Water Proof Covers | sets | 2 |
| 5 | Hose Clamp | piece | 1 |
| 6 | Wall Bracket | set | 1 |
| 7 | Screw Set | set | 1 |
| Model | Name | Description |
| SUN-ODB-OD2BS-36FC | Fiber Optic Terminal Box | Outdoor type; Max. 36 cores; FC square panel; Can be installed one 1: 32 PLC splitter; Wall-mounted; PLC splitter and adapter NOT included |
| SUN-ODB-OD2BS-36SC | Fiber Optic Terminal Box | Outdoor type; Max. 36 cores; SC panel; Can be installed one 1:32 PLC splitter; Wall-mounted; PLC splitter and adapters NOT included |
| SUN-ODB-OD2BS-36ST | Fiber Optic Terminal Box | Outdoor type; Max. 36 cores; ST panel; Can be installed one 1: 32 PLC splitter; Wall-mounted; PLC splitter and adapter NOT included |
| SUN-ODB-OD2BS-72FC | Fiber Optic Terminal Box | Outdoor type; Max. 72 cores; FC square panel; Can be installed two 1: 32 PLC or one 1:64 splitters; Wall-mounted; PLC splitter and adapter NOT included |
| SUN-ODB-OD2BS-72SC | Fiber Optic Terminal Box | Outdoor type; Max. 72 cores; SC panel; Can be installed two 1: 32 PLC or one 1:64 splitters; Wall-mounted; PLC splitter and adapter NOT included |
| SUN-ODB-OD2BS-72ST | Fiber Optic Terminal Box | Outdoor type; Max. 72 cores; ST panel; Can be installed two 1: 32 PLC or one1:64 splitters; Wall-mounted; PLC splitter and adapter NOT included |
