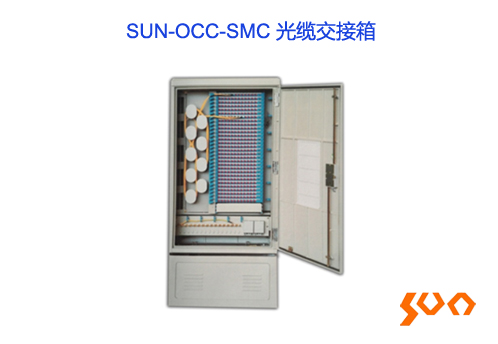

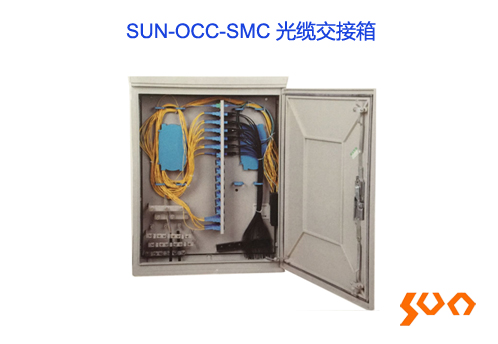

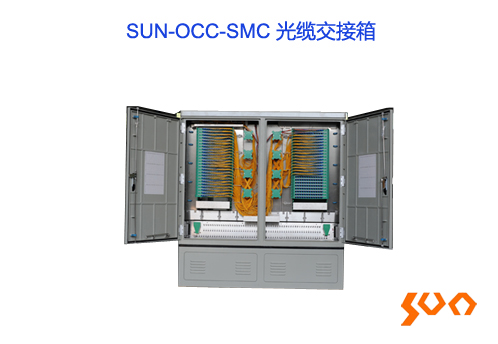

SUN-OCC-SMC Optical Cross-connect Cabinet

Model: SUN-OCC-SMC

Material: SMC, Max cores: 96/144/288/576/1152, IP65

    Key Features

  • Cabinets with SMC material: heat insulation, waterproof and good corrosion resistance
  • High performance rubber seals: effective rain and dust proof for outdoor environment
  • Modules individually removable: easy to construct and maintain
  • Reliable cable fixing and grounding protection devices
  • Safe and reliable fiber optic storage and protection
  • Description
  • Specifications
  • Ordering Information
  • Applications
  • FAQ
  • Product Video
  • 　Sun Telecom's SUN-OCC-SMC series fiber optic cross-connect cabinets are mainly used for termination and cross-connections between cabling elements. This series of OCC's are with excellent insulation, high water-proof and dust-proof performance. These are widely applied in fiber optic networks, PON (GPON, EPON, BPON, APON) OSP networks and WDM/CWDM/DWDM networks.
  • Specifications
    Parameters Specification
    Model SUN-OCC-SMC96 SUN-OCC-SMC144 SUN-OCC-SMC288 SUN-OCC-SMC576 SUN-OCC-SMC1152
    Max. No. of Cores 96 144 288 576 1152
    Splitter Type Box type
    Max. No. of Splitters 2 6 10 20 32
    Splice Tray Type 24 cores/tray 12 cores/tray (integrated splice tray)
    Max. No. of Splice Tray 8 14 (12+2) 26 (24+2) 52 (48+4) 100 (96+4)
    Cabinet Material SMC
    Adapter Panel FC square, SC, DLC (SC type), (ST and FC small D type can be customized)
    Insulation Resistance (MΩ) 1000 @500V (DC)
    Withstanding Voltage (V/min) 3000 (DC), no breakdown, no flashover
    Installation Type Wall,
    pole    		 Ground,
    pole    		 Ground,
    pole    		 Ground Ground
    Protection Rating IP65
    Operating Temperature (°C) -40~ +60
    Dimensions (mm) 710(H) x 550(W) × 180(D) 1035 (H) x 555 (W) × 310(D) 1450(H) x 750(W) × 320(D) 1450(H) x 750(W) × 540(D) 1550(H) x 1460(W) × 620(D)
    Weight (kg) 36.5 79 119 159 310



    Standard Package
    Model SUN-OCC-96SMC SUN-OCC-144SMC SUN-OCC-288SMC SUN-OCC-576SMC SUN-OCC-1152SMC
    No. Product Unit Quantity
    1 Cabinet set 1 1 1 1 1
    2 φ16~25 Hose Clamps pieces - 4 4 8 16
    3 φ10 ~ 16 Hose Clamps pieces 4 4 4 8 16
    4 φ8 Pipes meters 2 2 2 4 8
    5 Protective Tubes meters 3 8 8 16 32
    6 Sludge kg 0.25 0.25 0.35 0.7 1.4
    7 Ties pieces 30 30 30 60 120
    8 Protective Sleeves pieces 192 168 312 624 1200
    9 Keys pieces 2 2 2 2 4
    10 Tapes pieces 1 1 1 2 4

  • Model Name Description
    SUN-OCC-96SMC-SC-W Fiber Optic Cross-connect Cabinet Adaptor panel for max. 96 pieces of adapters, SC panel; 8 pieces of splicing trays (24 cores/tray) and accessories for wall application included; Pigtails, adapters and splitters NOT included; Material: SMC; Dimensions (mm): 710 (H) x 550 (W) × 180 (D)
    SUN-OCC-96SMC-SC-P Fiber Optic Cross-connect Cabinet Adaptor panel for max. 96 pieces of adapters, SC panel; 8 pieces of splicing trays (24 cores/tray) and accessories for pole application included; Pigtails, adapters and splitters NOT included; Material: SMC; Dimensions (mm): 710 (H) x 550 (W) × 180 (D)
    SUN-OCC-96SMC-FC-W Fiber Optic Cross-connect Cabinet Adaptor panel for max. 96 pieces of adapters, FC (square) panel; 8 pieces of splicing trays (24 cores/tray) and accessories for wall application included; Pigtails, adapters and splitters NOT included; Material: SMC; Dimensions (mm): 710 (H) x 550 (W) × 180 (D)
    SUN-OCC-96SMC-FC-P Fiber Optic Cross-connect Cabinet Adaptor panel for max. 96 pieces of adapters, FC (square) panel; 8 pieces of splicing trays (24 cores/tray) and accessories for pole application included; Pigtails, adapters and splitters NOT included; Material: SMC; Dimensions (mm): 710 (H) x 550 (W) × 180 (D)
    SUN-OCC-144SMC Fiber Optic Cross-connect Cabinet Adaptor panel for max. 144 pieces of adapters; 14 pieces of splice and distribution integrated trays (12 cores/tray), 6 splitter slots included; Pigtails, adapters and splitters NOT included; Material: SMC; With base; Dimensions (mm): 1035 (H) x 555 (W) × 310(D)
    SUN-OCC-144SMC-P Fiber Optic Cross-connect Cabinet Adaptor panel for max. 144 pieces of adapters; 14 pieces of splice and distribution integrated trays (12 cores/tray), and 6 splitter slots included; Pigtails, adapters and splitters NOT included; Material: SMC; Without base, pole mounting accessories included; Dimensions (mm): 1035 (H) x 555 (W) × 310(D)
    SUN-OCC-288SMC Fiber Optic Cross-connect Cabinet Adaptor panel for max. 288 pieces of adapters; 26 pieces of splice and distribution integrated trays (12 cores/tray), and 10 splitter slots included; Pigtails, adapters and splitters NOT included; Material: SMC; With base; Dimensions (mm):  1450(H) x 750(W) × 320(D)
    SUN-OCC-288SMC-P Fiber Optic Cross-connect Cabinet Adaptor panel for max. 288 pieces of adapters; 26 pieces of splice and distribution integrated trays (12 cores/tray), 10 splitter slots included; Pigtails, adapters and splitters NOT included; Material: SMC; Without base, pole mounting accessories included; Dimensions (mm): 1450(H) x 750(W) × 320(D)
    SUN-OCC-576SMC Fiber Optic Cross-connect Cabinet Adaptor panel for max. 576 pieces of adapters; 52 pieces of splice and distribution integrated trays (12 cores/tray), 20 splitter slots included; Pigtails, adapters and splitters NOT included; Material: SMC; With base; Dimensions (mm): 1450(H) x 750(W) × 540(D)
    SUN-OCC-1152SMC Fiber Optic Cross-connect Cabinet Adaptor panel for max. 1152 pieces of adapters; 100 pieces of splice and distribution integrated trays (12 cores/tray), 32 splitter slots included; Pigtails, adapters and splitters NOT included; Material: SMC; With base; Dimensions (mm): 1550(H) x 1460(W) × 620(D)

  • ● FTTH access networks
    ● Telecommunication networks
    ● CATV networks
    ● Local Area Networks
