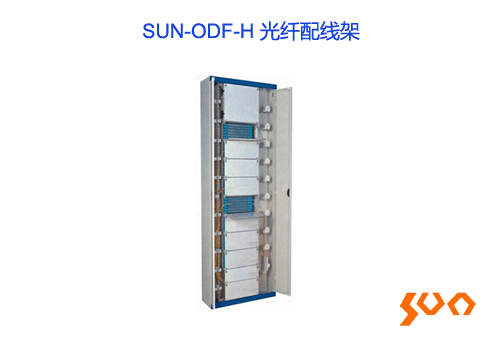

Max cores: 504/576/720, HD series can be used with ODF units
| Parameters | Specification | |
|
Model
|
SUN-ODF-HA
|
SUN-ODF-HD
|
|
Maximum Number of Cores
|
504/576/720
|
504/576
|
|
Cabinet Material
|
Cold-rolled steel (1.2mm thick)
|
|
|
Adapter Type
|
FC square, SC, DLC (SC type) (ST,FC small D can be customized)
|
|
|
Insulation Resistance (MΩ)
|
1000 @500V (DC)
|
|
|
Withstanding Voltage (V(D.C)/1min)
|
≥3000, no breakdown, no flashover
|
|
|
Dimensions (mm)
|
600(W) x 2000(H) x 300(D)
600(W) x 2200(H) x 300(D) 600(W) x 2600(H) x 300(D) |
840(W) x 2000(H) x 300(D)
840(W) x 2200(H) x 300(D) |
|
Weight (kg)
|
68/72/90
|
98.5/105
|
| Model | SUN-ODF-HA504 | SUN-ODF-HA576 | SUN-ODF-HA720 | SUN-ODF-HD504 | SUN-ODF-HD576 | ||
|
No.
|
Product
|
Unit
|
Quantity
|
||||
|
1
|
Frame
|
set
|
1
|
1
|
1
|
1
|
1
|
|
2
|
Protective Tube
|
piece
|
1
|
1
|
1
|
1
|
1
|
|
3
|
Protective Sleeves
|
pieces
|
504
|
576
|
720
|
504
|
576
|
|
4
|
Ties
|
pieces
|
42
|
48
|
60
|
42
|
48
|
| Comparison of Distribution Frame | |||
| SN | Specifications | SUN-ODF-HA | SUN-ODF-HD |
| 1 | Maximum Number of Cores | 504/576/720 | 504/576 |
| 2 | Adaptor Type | SC/DLC or FC square (ST can be customized) | |
| 3 | Cabinet Material | Cold-rolled sheet (1.2mm thick) | |
| 4 | Max. No. of Splitters | 2 | 6 |
| 5 | Differnce | Splicing done directly (Without tray) | Splicing done inside the box |
| 6 | Installation type | Ground | |
| Model | Name | Description |
| SUN-ODF-HA504 | Fiber Optic Distribution Frame | Max. 504 cores; Height 2 m; Integrated splice trays NOT included |
| SUN-ODF-HA576 | Fiber Optic Distribution Frame | Max. 576 cores; Height 2.2 m; Integrated splice trays NOT included |
| SUN-ODF-HA720 | Fiber Optic Distribution Frame | Max. 720 cores; Height 2.6 m; Integrated splice trays NOT included |
| SUN-ODF-HD504 | Fiber Optic Distribution Frame | Max. 504 cores (with SUN-ODF-HD-MU72 ODF unit); Height 2 m; ODF units NOT included |
| SUN-ODF-HD576 | Fiber Optic Distribution Frame | Max. 576 cores (with SUN-ODF-HD-MU72 ODF unit); Height 2.2 m; ODF units NOT included |
| SUN-ODF-HD-MU12 | ODF Unit | 12 cores; SC / FC (square) panel; Suitable for SUN-ODF-HD series fiber optic distribution frames (ODF); Adapters NOT included |
| SUN-ODF-HD-MU24 | ODF Unit | 24 cores; SC / FC (square) panel; Suitable for SUN-ODF-HD series fiber optic distribution frames (ODF); Adapters NOT included |
| SUN-ODF-HD-MU48 | ODF Unit | 48 cores; SC / FC (square) panel; Suitable for SUN-ODF-HD series fiber optic distribution frames (ODF); Adapters NOT included |
| SUN-ODF-HD-MU72 | ODF Unit | 72 cores; SC / FC (square) panel; Suitable for SUN-ODF-HD series fiber optic distribution frames (ODF); Adapters NOT included |
| SUN-ODF-H-T | Integrated Splice Tray | 12 cores; SC / FC (square) panel; Suitable for SUN-ODF-HA series fiber optic distribution frames (ODF) or SUN-ODF-HD-MU series ODF unit; Adapters NOT included |
Fiber Optic Patch Cords and Pigtails
Model:
Different interface optional, Easy operation, Low insertion loss
Features
Low insertion loss High return loss Good repeatability High temperature stability
SUN-AD Fiber Optic Adaptors
Model: SUN-AD
The adapters including FC, SC, ST, LC, MTRJ, MPO (PC ⁄ APC, SM ⁄ MM)
Features
Different interface optional Easy operation Low insertion loss Reuse for single / multimode fiber
SUN-OT5000 OTDR
Model: SUN-OT5000
Can test SM and MM fibers, optional light source, VFL and power meter
Features
Quick startup FTTX in-service testing (Up to1:64 splitter) Built-in PON power meter for Triple-play testing High configuration series include optical light source, optical power meter, visual fault locator (VFL) and Optical Connector Inspector (MCI) modules USB data interface (PC software for batch data processing and report output) Dustproof and shockproof (2-meter drop test) Light weight, small size, rugged design and simple operation Visual link image software (Optional)
SUN-1000 Ethernet Media Converter
Model: SUN-1000
10 ⁄ 100 ⁄ 1000Mbps, 1xRJ45, 1xOptical port
Features
Compliance with IEEE standards MTBF of more than 50000 hours Full & half duplex operation and auto-negotiation Electric interface self-adapting parallel/crossover connections Longest 1552 byte data packet transmission QoS ensuring VoIP data packet transmission STP Spanning Tree forming a redundant network Low power consumption and low heat for longtime stable operation Single/Multi mode and Single/Dual fiber transmission modes Network Management Function (optional)
SUN-IC-B Indoor Breakout Fiber Optic Cable
Model: SUN-IC-B
B-type Indoor Cable (2 ~ 48 cores)
Features
Excellent tensile strength ensured by stranded FRP strength member structure Aramid yarn as additional strength member providing good tensile strength
SUN-OC-SLT-SP GYTS Cable
Model: SUN-OC-SLT-SP
GYTS, Loose Tube Light-armored (Steel Tape) Cable, 2-144cores
Features
Good mechanical and temperature performance High hydrolysis resistance and high strength loose tube Good crush resistance and flexibility High tensile strength ensured by steel wire Good moisture-proof ensured by PSP Gopher protected cable
