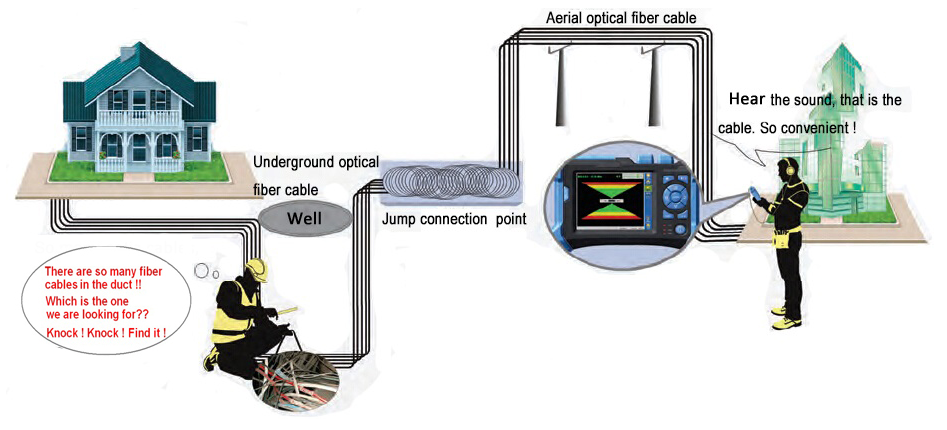

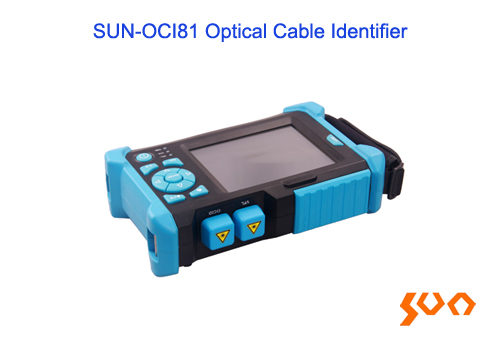

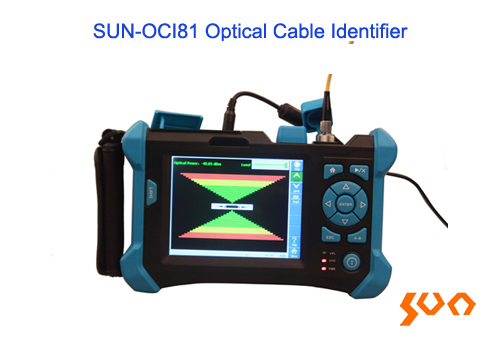

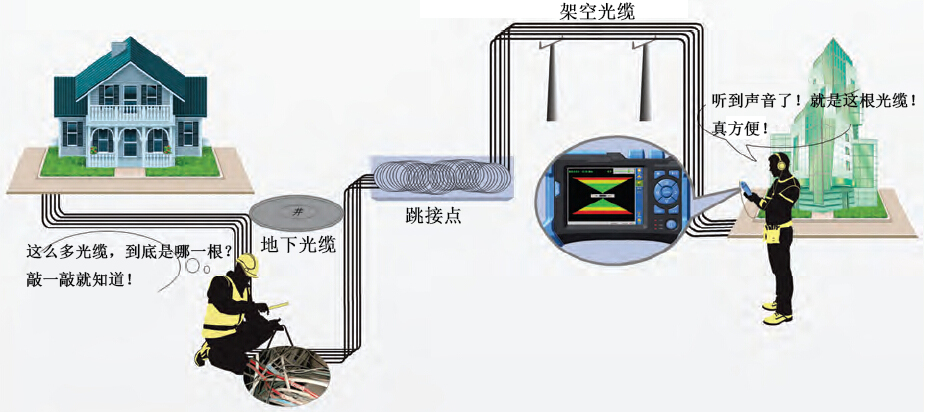

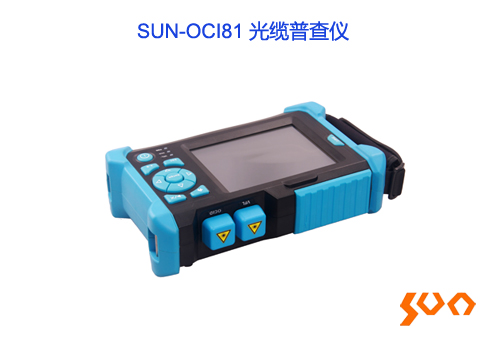

Optical cable identifier, cables locating and identifying by audio and visual, distance up to 40 km
| Parameters | Specification | ||
| Model | SUN-OCI8110-20 | SUN-OCI8110-40 | SUN-OCI8120-40 |
| Test Method | Single Fiber | ||
| Wavelength (nm) | 1550 | ||
| Min. Optical Power (dBm) | -15 | -8 | -15 |
| Unidirectional Fiber Loss (dB) ① | 5 | 10 | 10 |
| Max. Detection Distance (km) ② | 20 | 40 | 40 |
| Dead Zone | None | ||
| Fiber End Return Loss (dB) | ≤20 | ||
| SNR (dB) | >40 | >25 | |
| Fiber Type | SM | ||
| Optical Interface | FC/SC/ST interchangeable port | ||
| Visual Fault Locator (VFL) | Wavelength: 650nm Output power: ≥-3 dBm Max. testing distance: 3km |
No | |
| Display | 5.6’ LCD touch screen | ||
| Output Mode | Visual: vibration amplitude on touch screen LCD | ||
| Audio: sound in headphone | |||
| Power Supply | DC 12V/3A | ||
| Battery | Lithium battery (7.4V, 10.4Ah), ≥14 hours of continuous work | ||
| Power (W) | <6 | ||
| Operation Temperature (°C) | -10~+50 | ||
| Storage Temperature (°C) | -40~+70 | ||
| Dimensions (mm) | 235(L) × 150(W) × 65(H) | ||
| Weight (kg) | 1.5 (with battery) | ||

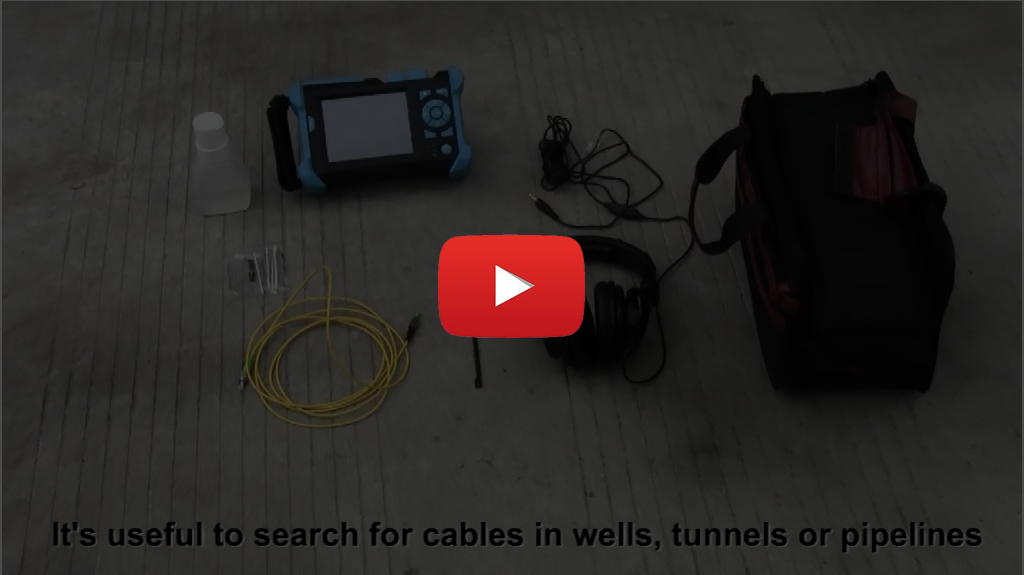

| No. | Product | Unit | Quantity |
| 1 | Optical Cable Identifier | set | 1 |
| 2 | Power Adapter | piece | 1 |
| 3 | CD | piece | 1 |
| 4 | FC Adapter | piece | 1 |
| 5 | Headphone | piece | 1 |
| 6 | Fiber Reflector (only for SUN-OCI8110) | piece | 1 |
| 7 | FC/UPC-FC/APC Patchcord | piece | 1 |
| 8 | Knocking Stick | piece | 1 |
| 9 | Bag | piece | 1 |
| Model | Name | Description |
| SUN-OCI8110-20 | Optical Cable Identifier | SM, FC/APC optical port; Detection distance: 20km; VFL (Visual Fault Locator) function included; Suitable for cables with a connector (UPC) at another end |
| SUN-OCI8110-40 | Optical Cable Identifier | SM, FC/APC optical port; Detection distance: 40km; VFL (Visual Fault Locator) function included; Suitable for cables with a connector (UPC) at another end |
| SUN-OCI8120-40 | Optical Cable Identifier | SM, FC/APC optical port; Detection distance: 40km; Suitable for cables with a connector (UPC or APC) at another end |
SUN-OC-SLT-SP GYTS Cable
Model: SUN-OC-SLT-SP
GYTS, Loose Tube Light-armored (Steel Tape) Cable, 2-144cores
Features
Good mechanical and temperature performance High hydrolysis resistance and high strength loose tube Good crush resistance and flexibility High tensile strength ensured by steel wire Good moisture-proof ensured by PSP Gopher protected cable
SUN-DC240 FTTH Indoor Cable
Model: SUN-DC240
Drop Cable, 1-4 cores, G657, flame retardent, for FTTH application
Features
Good crush resistance ensured by parallel strength member Good tensile strength ensured by single steel wire Low smoke, zero halogen and flame retardant sheath Simple Structure, light weight and high practicability
Fiber Optic Patch Cords and Pigtails
Model:
Different interface optional, Easy operation, Low insertion loss
Features
Low insertion loss High return loss Good repeatability High temperature stability
SUN-1000 Ethernet Media Converter
Model: SUN-1000
10 ⁄ 100 ⁄ 1000Mbps, 1xRJ45, 1xOptical port
Features
Compliance with IEEE standards MTBF of more than 50000 hours Full & half duplex operation and auto-negotiation Electric interface self-adapting parallel/crossover connections Longest 1552 byte data packet transmission QoS ensuring VoIP data packet transmission STP Spanning Tree forming a redundant network Low power consumption and low heat for longtime stable operation Single/Multi mode and Single/Dual fiber transmission modes Network Management Function (optional)
SUN-FOSC-ZT607 Splice Closure
Model: SUN-FOSC-ZT607
Max 96 fibers, 24 fibers tray, 8-16mm cables, 6 ports, sliding locking
Features
Advanced internal design with enough space for fiber splicing and storage Long lasting body with high-strength PC plastic material Protection rating IP68 Usable for multiple number of times Lower and upper cases with sliding locking

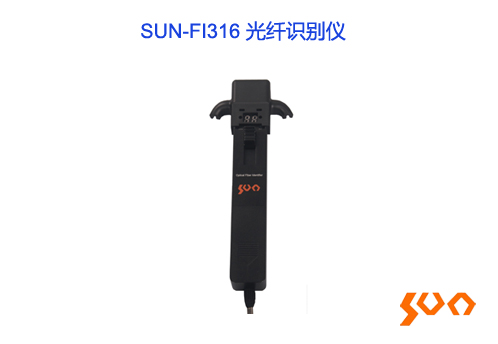

SUN-FI316 Optical Fiber Identifier
